Built for the rugged Australian landscape, Pioneer farm water tanks are designed to withstand the harshest climates with strength and reliability.
Long-lasting. Good-looking. Farm tough.
✔ Quality Australian-made water tanks
✔ Engineered for durability
✔ Designed to handle the toughest conditions
Australian TV and movie personality Shane Jacobson is a massive fan of the Pioneer product.
Shane’s first ordered a 110,000L tank in 2017 to store water for fire fighting. Then in 2019, when he started building his new home, he added two 60,000L tanks to his property to take advantage of the rainwater.
Pioneer Water Tanks are designed to save customers money by eliminating the need for costly concrete ring beam foundations.
Through innovative engineering, Pioneer has developed tank solutions that significantly reduce the purchase costs typically associated with large-scale water storage—particularly tanks with capacities around one million litres.
The Pioneer V-LOCK® wall profile has been expertly designed by Pioneer Water Tanks’ engineering team to deliver long-lasting durability and strength.
Unlike some water tank companies that rely solely on overall steel thickness, Pioneer’s design strategically places steel where it matters most—ensuring superior structural integrity without unnecessary weight.
Tank Size | Bottom Ring | Middle Ring | Top Ring |
|---|---|---|---|
GT500 | 2mm | 1.6mm | 1mm |
GT410 | 2mm | 1.6mm | 0.8mm |
GT370 | 2mm | 1.2mm | 0.8mm |
GT200 | 1.2mm | N/A | 0.8mm |
GT130 | 1mm | N/A | 0.8mm |
Up to GT110 | 0.8mm | N/A | 0.8mm |
A testament to engineering excellence, the Pioneer V-LOCK® wall profile is built for strength, durability, and longevity, offering superior internal support for the tank liner.
Paired with the AQUALINER Fresh® antimicrobial liner, your water stays fresher, cleaner, and healthier for longer—ensuring safe and reliable storage for years to come.
Pioneer Water Tanks come in a range of sizes to meet your specific water storage needs.
The litres/gallons listed in the table represent gross capacities, while the actual usable volume may vary based on the placement of inlets and outlets.

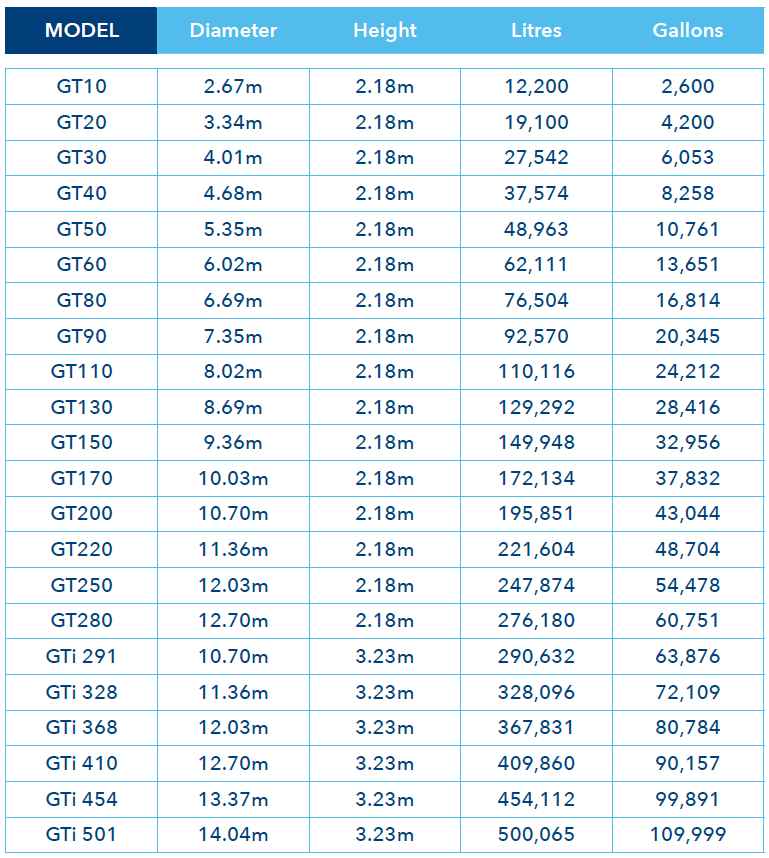

MODEL | Diameter | Height | Litres | Gallons |
|---|---|---|---|---|
GT10 | 2.67m | 2.18m | 12,200 | 2,600 |
GT20 | 3.34m | 2.18m | 19,100 | 4,200 |
GT30 | 4.01m | 2.18m | 27,542 | 6,053 |
GT40 | 4.68m | 2.18m | 37,574 | 8,258 |
GT50 | 5.35m | 2.18m | 48,963 | 10,761 |
GT60 | 6.02m | 2.18m | 62,111 | 13,651 |
GT80 | 6.69m | 2.18m | 76,504 | 16,814 |
GT90 | 7.35m | 2.18m | 92,570 | 20,345 |
GT110 | 8.02m | 2.18m | 110,116 | 24,212 |
GT130 | 8.69m | 2.18m | 129,292 | 28,416 |
GT150 | 9.36m | 2.18m | 149,948 | 32,956 |
GT170 | 10.03m | 2.18m | 172,134 | 37,832 |
GT200 | 10.70m | 2.18m | 195,851 | 43,044 |
GT220 | 11.36m | 2.18m | 221,604 | 48,704 |
GT250 | 12.03m | 2.18m | 247,874 | 54,478 |
GT280 | 12.70m | 2.18m | 276,180 | 60,751 |
GTi291 | 10.70m | 3.23m | 290,632 | 63,876 |
GTi328 | 11.36m | 3.23m | 328,096 | 72,109 |
GTi328 | 12.03m | 3.23m | 367,831 | 80,784 |
GTi410 | 12.70m | 3.23m | 409,860 | 90,157 |
GTi454 | 13.37m | 3.23m | 454,112 | 99,891 |
GTi501 | 14.04m | 3.23m | 500,065 | 500,065 |
Understanding that farm water tanks are often positioned close to the home and should complement the surrounding environment, Pioneer Water Tanks offers a wide range of colours and optional features to suit individual preferences and property aesthetics.
Yes, Pioneer water tanks are expertly manufactured for a wide range of applications and are built to withstand the demands of irrigation. Designed for durability and reliability, they provide a dependable water storage solution for farms, agriculture, and commercial use.
Yes, we can supply a water tank equipped with the necessary fittings to efficiently collect and store rainwater harvested from your roof. Our tanks are designed for seamless integration with your existing catchment system, ensuring optimal water collection and storage.
If you’re sourcing water from a dam or bore, we recommend installing your inlet at the bottom wall of your water tank whenever possible.
While it may seem unconventional, bottom inlets provide optimal tank performance by improving water circulation and reducing sediment buildup.
For roof-harvested water, we suggest using the standard roof lead filter basket to ensure effective filtration and clean water storage.
Top inlets can create small wave actions on the water’s surface when filling the tank, occasionally causing splashing into the roof area.
To prevent this and ensure better water management, it’s best to avoid top inlets when possible and consider bottom inlets for improved tank performance.
Filling your tank through a bottom inlet allows water to flow smoothly into the existing volume, causing the water level to rise and fall without splashing—unlike top inlets that can create turbulence.
You might wonder whether the water inside pushes back into the inlet, but that’s not the case. The pressure at the inlet is determined by the head pressure inside the tank.
For example:
This means the higher the water level, the greater the pressure, ensuring a consistent and efficient fill process.
No, in over 30 years of experience, we’ve encountered only a small number of cases where roof area was insufficient for effective water collection.
If you’re unsure about your catchment capacity, contact our expert consultants for personalised advice and solutions tailored to your needs.
Pioneer offer a comprehensive range of premium features, ensuring durability and optimal performance for your water tank:
✔ AQUALINER FRESH® antimicrobial tank liner
✔ Double fusion-welded liner seams for superior strength
✔ Adaptive swivel foot roof truss connector for enhanced structural integrity
✔ Heavy-duty roof access hatch for secure entry
✔ External hook-on ladder for easy access
✔ 80mm overflow for efficient drainage
✔ 80mm outlet and valve (multiple available if required)
✔ 50mm inlet for smooth water intake
Designed for strength, longevity, and convenience, Pioneer Water Tanks are built to perform in the toughest conditions.
